Integrated Circuits Used

74LS00

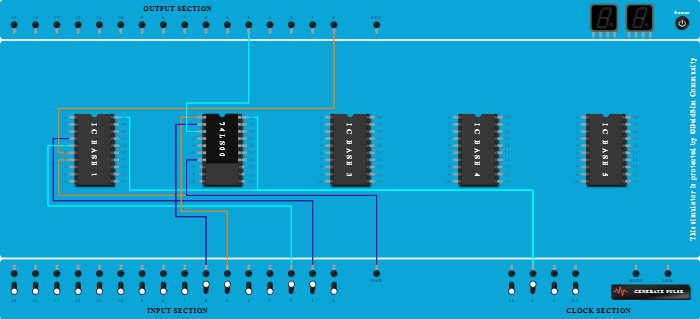

Procedure

  1. Connect Clock port of 5Hz frequency to Pin-20 (Input & Output) of ICBase-1.
  2. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  3. Connect Input-1 to Pin-4 (Input & Output) of ICBase-1.
  4. Connect Input-2 to Pin-5 (Input & Output) of ICBase-1.
  5. Connect Output-0 to Pin-6 (Input & Output) of ICBase-1.
  6. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  7. Connect Clock port of 5Hz frequency to Pin-20 (VCC) of ICBase-2 (74LS00).
  8. Connect Input-5 to Pin-1 (Input) of ICBase-2 (74LS00).
  9. Connect Input-6 to Pin-2 (Input) of ICBase-2 (74LS00).
  10. Connect Output-4 to Pin-3 (Output) of ICBase-2 (74LS00).
  11. Add IC 74LS00 into ICBase-2 (74LS00).
