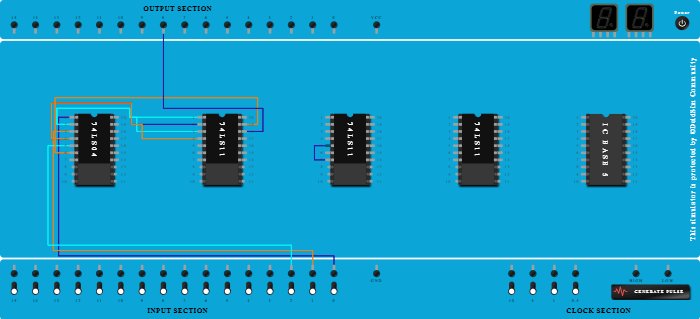

Untitled circuit
100%

Integrated Circuits Used

74LS04 74LS11

Procedure

  1. Add IC 74LS04 into ICBase-1 (74LS04).
  2. Add IC 74LS11 into ICBase-2 (74LS11).
  3. Add IC 74LS11 into ICBase-3 (74LS11).
  4. Add IC 74LS11 into ICBase-4 (74LS11).
  5. Connect Pin-1 (Input) of ICBase-1 (74LS04) to Input-0.
  6. Connect Pin-1 (Input) of ICBase-2 (74LS11) to Pin-2 (Output) of ICBase-1 (74LS04).
  7. Connect Pin-3 (Input) of ICBase-1 (74LS04) to Input-1.
  8. Connect Pin-2 (Input) of ICBase-2 (74LS11) to Pin-4 (Output) of ICBase-1 (74LS04).
  9. Connect Pin-5 (Input) of ICBase-1 (74LS04) to Input-2.
  10. Connect Pin-19 (Input) of ICBase-2 (74LS11) to Pin-6 (Output) of ICBase-1 (74LS04).
  11. Connect Output-8 to Pin-18 (Output) of ICBase-2 (74LS11).
  12. Connect Pin-3 (Input) of ICBase-2 (74LS11) to Pin-2 (Output) of ICBase-1 (74LS04).
  13. Connect Pin-4 (Input) of ICBase-2 (74LS11) to Pin-4 (Output) of ICBase-1 (74LS04).
  14. Connect Pin-7 (Ground) of ICBase-3 (74LS11) to Pin-5 (Input) of ICBase-3 (74LS11).
