binary to grey
100%

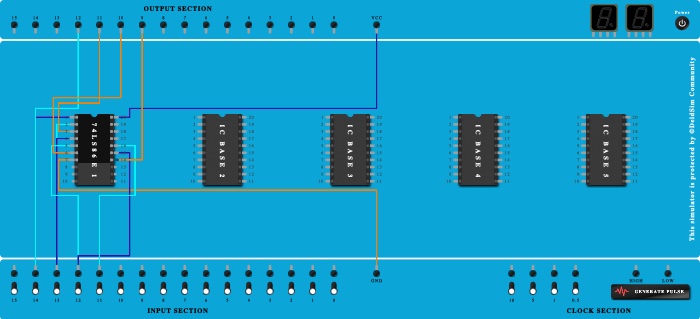

Procedure

  1. Add IC 74LS86 into ICBase-1 (74LS86).
  2. Connect Input-14 to Pin-1 (Input) of ICBase-1 (74LS86).
  3. Connect Output-12 to Input-14.
  4. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS86).
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS86).
  6. Connect Input-13 to Pin-2 (Input) of ICBase-1 (74LS86).
  7. Connect Output-11 to Pin-3 (Output) of ICBase-1 (74LS86).
  8. Connect Pin-4 (Input) of ICBase-1 (74LS86) to Input-13.
  9. Connect Input-12 to Pin-5 (Input) of ICBase-1 (74LS86).
  10. Connect Output-10 to Pin-6 (Output) of ICBase-1 (74LS86).
  11. Connect Pin-15 (Input) of ICBase-1 (74LS86) to Input-12.
  12. Connect Input-11 to Pin-16 (Input) of ICBase-1 (74LS86).
  13. Connect Output-9 to Pin-14 (Output) of ICBase-1 (74LS86).
