Untitled circuit

Parag Watane
Parag Watane
• Created on Nov 4, 2025 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

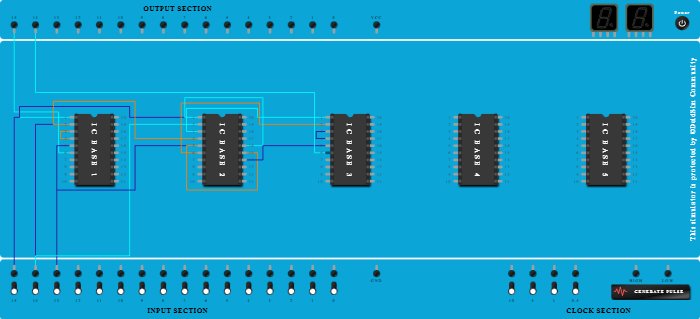

Procedure

  1. Connect Pin-1 (Input & Output) of ICBase-1 to Input-15.
  2. Connect Pin-2 (Input & Output) of ICBase-1 to Input-14.
  3. Connect Pin-4 (Input & Output) of ICBase-1 to Pin-3 (Input & Output) of ICBase-1.
  4. Connect Pin-5 (Input & Output) of ICBase-1 to Input-13.
  5. Connect Output-15 to Pin-6 (Input & Output) of ICBase-1.
  6. Connect Pin-1 (Input & Output) of ICBase-2 to Input-15.
  7. Connect Pin-2 (Input & Output) of ICBase-2 to Input-14.
  8. Connect Pin-1 (Input & Output) of ICBase-3 to Pin-3 (Input & Output) of ICBase-2.
  9. Connect Pin-4 (Input & Output) of ICBase-2 to Pin-2 (Input & Output) of ICBase-1.
  10. Connect Pin-5 (Input & Output) of ICBase-2 to Pin-5 (Input & Output) of ICBase-1.
  11. Connect Pin-2 (Input & Output) of ICBase-3 to Pin-6 (Input & Output) of ICBase-2.
  12. Connect Pin-4 (Input & Output) of ICBase-3 to Pin-3 (Input & Output) of ICBase-3.
  13. Connect Pin-16 (Input & Output) of ICBase-2 to Pin-1 (Input & Output) of ICBase-2.
  14. Connect Pin-15 (Input & Output) of ICBase-2 to Pin-5 (Input & Output) of ICBase-2.
  15. Connect Pin-5 (Input & Output) of ICBase-3 to Pin-14 (Input & Output) of ICBase-2.
  16. Connect Output-14 to Pin-6 (Input & Output) of ICBase-3.
