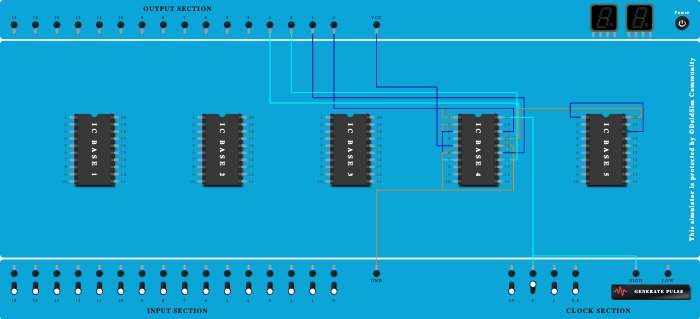

Procedure
- Connect Pin-20 (Input & Output) of ICBase-4 to Clock port of 5Hz frequency.
- Connect Pin-1 (Input & Output) of ICBase-4 to Pin-18 (Input & Output) of ICBase-4.
- Connect Output-0 to Pin-18 (Input & Output) of ICBase-4.
- Connect Output-3 to Pin-17 (Input & Output) of ICBase-4.
- Connect GND Port to Pin-16 (Input & Output) of ICBase-4.
- Connect Output-1 to Pin-15 (Input & Output) of ICBase-4.
- Connect Output-2 to Pin-14 (Input & Output) of ICBase-4.
- Connect GND Port to Pin-2 (Input & Output) of ICBase-4.
- Connect GND Port to Pin-3 (Input & Output) of ICBase-4.
- Connect GND Port to Pin-7 (Input & Output) of ICBase-4.
- Connect GND Port to Pin-6 (Input & Output) of ICBase-4.
- Connect VCC Port to Pin-5 (Input & Output) of ICBase-4.
- Connect Pin-20 (Input & Output) of ICBase-4 to Manual clock Port.
- Connect Pin-20 (Input & Output) of ICBase-5 to Pin-17 (Input & Output) of ICBase-4.
- Connect Pin-1 (Input & Output) of ICBase-5 to Pin-18 (Input & Output) of ICBase-5.
