Integrated Circuits Used

74LS04 74LS32 74LS10

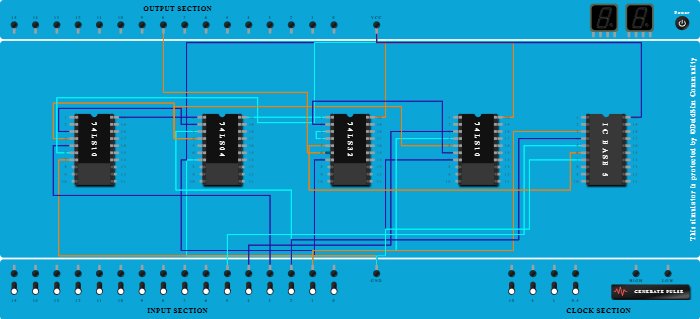

Procedure

  1. Add IC 74LS04 into ICBase-2 (74LS04).
  2. Add IC 74LS32 into ICBase-3 (74LS32).
  3. Connect Pin-20 (VCC) of ICBase-1 (74LS10) to VCC Port.
  4. Connect Pin-20 (VCC) of ICBase-2 (74LS04) to VCC Port.
  5. Connect Pin-20 (VCC) of ICBase-3 (74LS32) to VCC Port.
  6. Connect Pin-7 (Ground) of ICBase-3 (74LS32) to GND Port.
  7. Connect Pin-7 (Ground) of ICBase-2 (74LS04) to GND Port.
  8. Connect Pin-7 (Ground) of ICBase-1 (74LS10) to GND Port.
  9. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Input-1.
  10. Add IC 74LS10 into ICBase-1 (74LS10).
  11. Connect Pin-3 (Input) of ICBase-1 (74LS10) to Pin-2 (Output) of ICBase-2 (74LS04).
  12. Connect Input-2 to Pin-3 (Input) of ICBase-2 (74LS04).
  13. Connect Pin-4 (Input) of ICBase-1 (74LS10) to Pin-4 (Output) of ICBase-2 (74LS04).
  14. Connect Input-3 to Pin-5 (Input) of ICBase-1 (74LS10).
  15. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Pin-6 (Output) of ICBase-1 (74LS10).
  16. Connect Pin-20 (VCC) of ICBase-4 (74LS10) to VCC Port.
  17. Connect Pin-7 (Ground) of ICBase-4 (74LS10) to GND Port.
  18. Connect Pin-3 (Input) of ICBase-4 (74LS10) to Input-4.
  19. Connect Pin-4 (Input) of ICBase-4 (74LS10) to Input-1.
  20. Connect Pin-5 (Input) of ICBase-4 (74LS10) to Pin-4 (Output) of ICBase-2 (74LS04).
  21. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Pin-6 (Output) of ICBase-4 (74LS10).
  22. Connect Pin-4 (Input) of ICBase-3 (74LS32) to Pin-3 (Output) of ICBase-3 (74LS32).
  23. Add IC 74LS10 into ICBase-4 (74LS10).
  24. Connect Pin-3 (Input & Output) of ICBase-5 to Input-1.
  25. Connect Pin-4 (Input & Output) of ICBase-5 to Input-2.
  26. Connect Pin-5 (Input & Output) of ICBase-5 to Input-5.
  27. Connect Pin-5 (Input) of ICBase-3 (74LS32) to Pin-6 (Input & Output) of ICBase-5.
  28. Connect Pin-20 (Input & Output) of ICBase-5 to VCC Port.
  29. Connect Pin-7 (Input & Output) of ICBase-5 to GND Port.
  30. Connect Output-8 to Pin-6 (Output) of ICBase-3 (74LS32).
