New Circuit

Tharuni Prakash K
Tharuni Prakash K
• Created on Nov 6, 2025 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

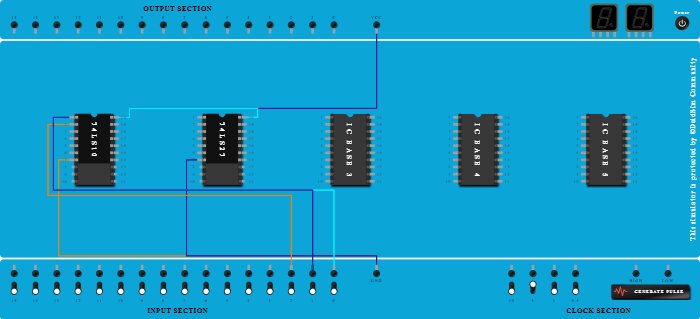

Integrated Circuits Used

74LS10 74LS27

Procedure

  1. Add IC 74LS10 into ICBase-1 (74LS10).
  2. Add IC 74LS27 into ICBase-2 (74LS27).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS10).
  4. Connect Pin-20 (VCC) of ICBase-2 (74LS27) to Pin-20 (VCC) of ICBase-1 (74LS10).
  5. Connect Pin-7 (Ground) of ICBase-1 (74LS10) to GND Port.
  6. Connect Pin-7 (Ground) of ICBase-2 (74LS27) to GND Port.
  7. Connect Input-0 to Pin-1 (Input) of ICBase-1 (74LS10).
  8. Connect Input-2 to Pin-2 (Input) of ICBase-1 (74LS10).
  9. Connect Pin-1 (Input) of ICBase-1 (74LS10) to Input-1.
