7432 OR
100%

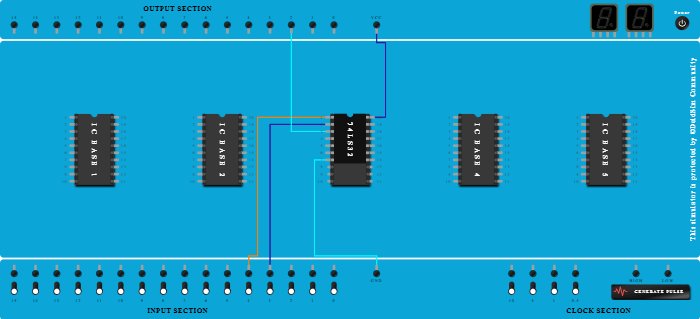

Procedure

  1. Connect Pin-20 (VCC) of ICBase-3 (74LS32) to VCC Port.
  2. Connect Pin-7 (Ground) of ICBase-3 (74LS32) to GND Port.
  3. Add IC 74LS32 into ICBase-3 (74LS32).
  4. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Input-4.
  5. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Input-3.
  6. Connect Output-2 to Pin-3 (Output) of ICBase-3 (74LS32).
