Integrated Circuits Used

74LS32

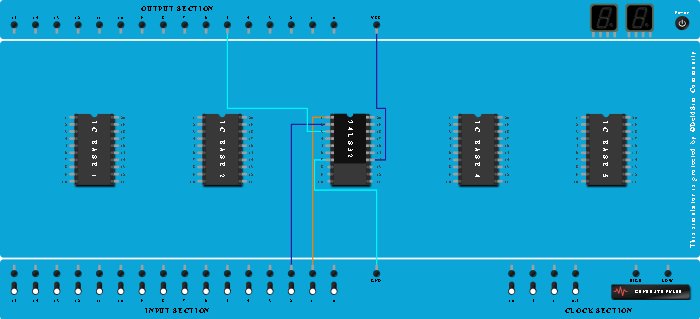

Procedure

  1. Connect VCC Port to Pin-14 (Output) of ICBase-3 (74LS32).
  2. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS32).
  3. Add IC 74LS32 into ICBase-3 (74LS32).
  4. Connect Input-1 to Pin-1 (Input) of ICBase-3 (74LS32).
  5. Connect Input-2 to Pin-2 (Input) of ICBase-3 (74LS32).
  6. Connect Output-5 to Pin-3 (Output) of ICBase-3 (74LS32).
