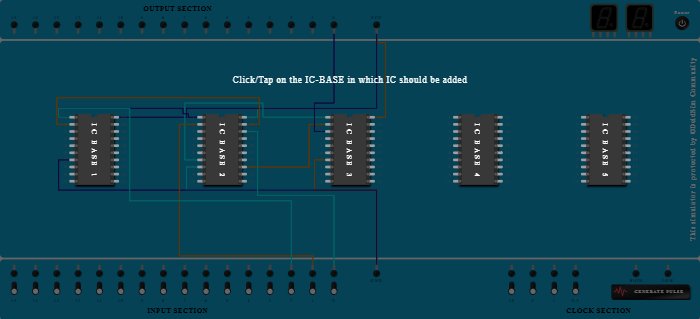

Procedure

  1. Connect VCC Port to Pin-20 (Input & Output) of ICBase-2.
  2. Connect Pin-20 (Input & Output) of ICBase-3 to VCC Port.
  3. Connect Pin-20 (Input & Output) of ICBase-1 to VCC Port.
  4. Connect GND Port to Pin-8 (Input & Output) of ICBase-2.
  5. Connect Pin-7 (Input & Output) of ICBase-3 to GND Port.
  6. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  7. Connect Pin-1 (Input & Output) of ICBase-3 to Pin-7 (Input & Output) of ICBase-2.
  8. Connect Pin-13 (Input & Output) of ICBase-2 to Pin-2 (Input & Output) of ICBase-3.
  9. Connect Output-0 to Pin-3 (Input & Output) of ICBase-3.
  10. Connect Input-0 to Pin-18 (Input & Output) of ICBase-2.
  11. Connect Pin-2 (Input & Output) of ICBase-2 to Input-1.
  12. Connect Pin-1 (Input & Output) of ICBase-1 to Pin-1 (Input & Output) of ICBase-2.
  13. Connect Input-2 to Pin-1 (Input & Output) of ICBase-1.
  14. Connect Pin-19 (Input & Output) of ICBase-2 to Pin-2 (Input & Output) of ICBase-1.
