New Circuit

Saksham Singh
Saksham Singh
• Created on Nov 2, 2025 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

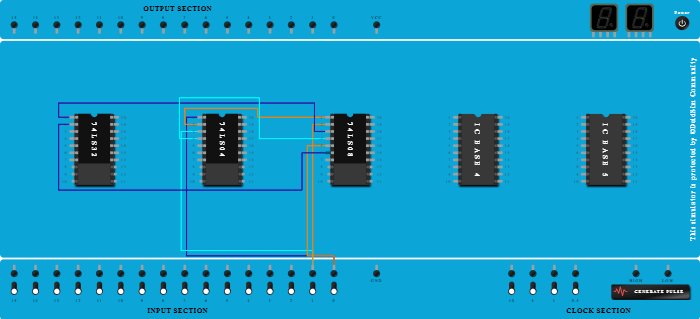

Integrated Circuits Used

74LS32 74LS04 74LS08

Procedure

  1. Add IC 74LS32 into ICBase-1 (74LS32).
  2. Add IC 74LS04 into ICBase-2 (74LS04).
  3. Add IC 74LS08 into ICBase-3 (74LS08).
  4. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Input-0.
  5. Connect Pin-3 (Input) of ICBase-2 (74LS04) to Input-1.
  6. Connect Pin-1 (Input) of ICBase-3 (74LS08) to Pin-2 (Output) of ICBase-2 (74LS04).
  7. Connect Pin-2 (Input) of ICBase-3 (74LS08) to Input-1.
  8. Connect Pin-1 (Input) of ICBase-1 (74LS32) to Pin-3 (Output) of ICBase-3 (74LS08).
  9. Connect Pin-4 (Input) of ICBase-3 (74LS08) to Pin-4 (Output) of ICBase-2 (74LS04).
  10. Connect Pin-5 (Input) of ICBase-3 (74LS08) to Input-0.
  11. Connect Pin-2 (Input) of ICBase-1 (74LS32) to Pin-6 (Output) of ICBase-3 (74LS08).
