1:4 DEMUX
100%

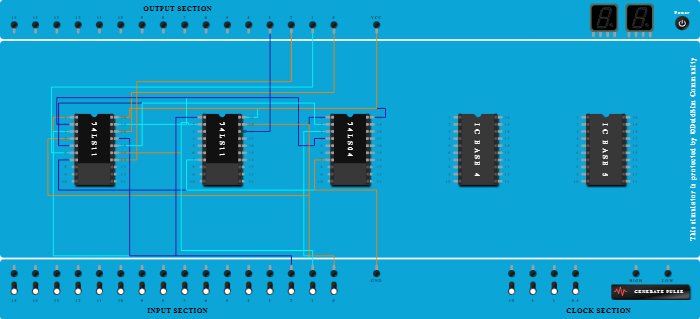

Procedure

  1. Add IC 74LS11 into ICBase-1 (74LS11).
  2. Add IC 74LS11 into ICBase-2 (74LS11).
  3. Add IC 74LS04 into ICBase-3 (74LS04).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS11).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS11).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS11).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS11).
  10. Connect Pin-1 (Input) of ICBase-3 (74LS04) to Input-0.
  11. Connect Pin-3 (Input) of ICBase-3 (74LS04) to Input-1.
  12. Connect Pin-1 (Input) of ICBase-1 (74LS11) to Input-2.
  13. Connect Pin-2 (Input) of ICBase-1 (74LS11) to Pin-2 (Output) of ICBase-3 (74LS04).
  14. Connect Pin-19 (Input) of ICBase-1 (74LS11) to Pin-4 (Output) of ICBase-3 (74LS04).
  15. Connect Output-0 to Pin-18 (Output) of ICBase-1 (74LS11).
  16. Connect Input-2 to Pin-3 (Input) of ICBase-1 (74LS11).
  17. Connect Input-0 to Pin-4 (Input) of ICBase-1 (74LS11).
  18. Connect Pin-5 (Input) of ICBase-1 (74LS11) to Pin-4 (Output) of ICBase-3 (74LS04).
  19. Connect Output-1 to Pin-6 (Output) of ICBase-1 (74LS11).
  20. Connect Output-2 to Pin-14 (Output) of ICBase-1 (74LS11).
  21. Connect Input-2 to Pin-17 (Input) of ICBase-1 (74LS11).
  22. Connect Pin-2 (Output) of ICBase-3 (74LS04) to Pin-16 (Input) of ICBase-1 (74LS11).
  23. Connect Pin-15 (Input) of ICBase-1 (74LS11) to Input-1.
  24. Connect Pin-1 (Input) of ICBase-2 (74LS11) to Input-2.
  25. Connect Input-1 to Pin-2 (Input) of ICBase-2 (74LS11).
  26. Connect Pin-19 (Input) of ICBase-2 (74LS11) to Input-0.
  27. Connect Output-3 to Pin-18 (Output) of ICBase-2 (74LS11).
