Integrated Circuits Used

74LS04 74LS11

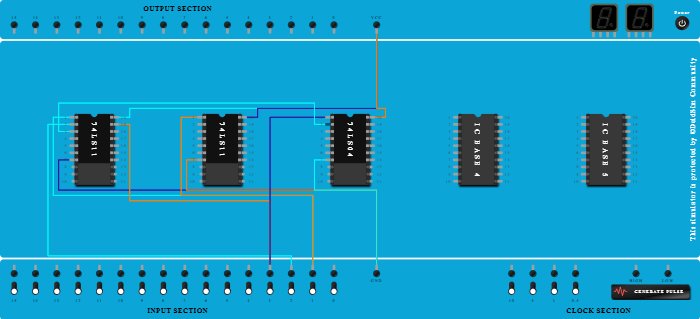

Procedure

  1. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS11).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS11).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS11).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS11).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  7. Connect Input-1 to Pin-1 (Input) of ICBase-1 (74LS11).
  8. Add IC 74LS04 into ICBase-3 (74LS04).
  9. Add IC 74LS11 into ICBase-1 (74LS11).
  10. Add IC 74LS11 into ICBase-2 (74LS11).
  11. Connect Pin-1 (Input) of ICBase-2 (74LS11) to Input-1.
  12. Connect Pin-2 (Input) of ICBase-1 (74LS11) to Input-2.
  13. Connect Input-3 to Pin-19 (Input) of ICBase-1 (74LS11).
  14. Connect Pin-1 (Input) of ICBase-3 (74LS04) to Input-3.
  15. Connect Pin-3 (Input) of ICBase-1 (74LS11) to Pin-2 (Output) of ICBase-3 (74LS04).
