Integrated Circuits Used

74LS32

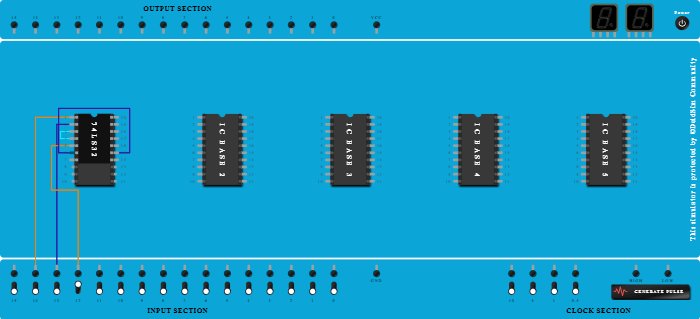

Procedure

  1. Add IC 74LS32 into ICBase-1 (74LS32).
  2. Connect Input-14 to Pin-1 (Input) of ICBase-1 (74LS32).
  3. Connect Input-13 to Pin-2 (Input) of ICBase-1 (74LS32).
  4. Connect Pin-4 (Input) of ICBase-1 (74LS32) to Pin-3 (Output) of ICBase-1 (74LS32).
  5. Connect Input-12 to Pin-5 (Input) of ICBase-1 (74LS32).
  6. Connect Pin-15 (Input) of ICBase-1 (74LS32) to Pin-6 (Output) of ICBase-1 (74LS32).
