Integrated Circuits Used

74LS10

Procedure

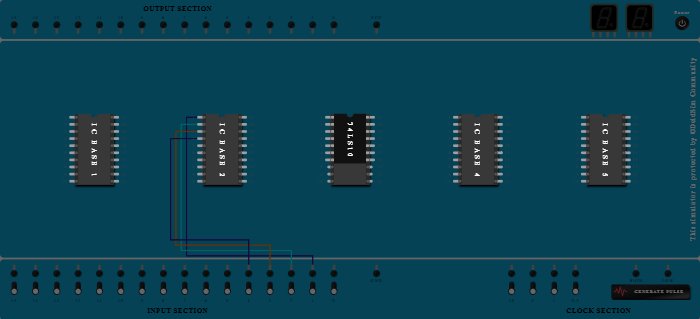

  1. Connect Pin-1 (Input & Output) of ICBase-2 to Input-1.
  2. Connect Pin-2 (Input & Output) of ICBase-2 to Input-2.
  3. Connect Pin-3 (Input & Output) of ICBase-2 to Input-3.
  4. Connect Pin-4 (Input & Output) of ICBase-2 to Input-4.
  5. Add IC 74LS10 into ICBase-3 (74LS10).
