Integrated Circuits Used

74LS10 74LS00

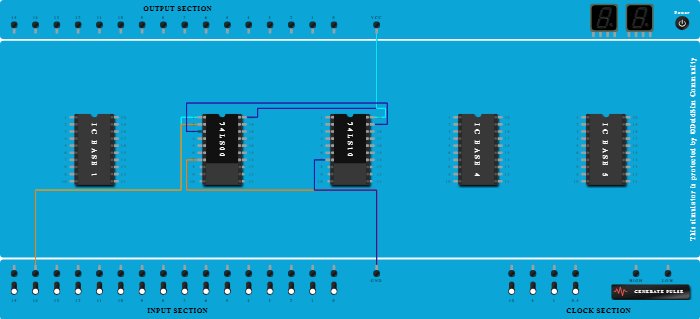

Procedure

  1. Add IC 74LS10 into ICBase-3 (74LS10).
  2. Add IC 74LS00 into ICBase-2 (74LS00).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS10).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS10).
  7. Connect Input-14 to Pin-1 (Input) of ICBase-2 (74LS00).
  8. Connect Pin-2 (Input) of ICBase-2 (74LS00) to Input-14.
  9. Connect Pin-19 (Input) of ICBase-3 (74LS10) to Pin-3 (Output) of ICBase-2 (74LS00).
