Integrated Circuits Used

74LS02

Procedure

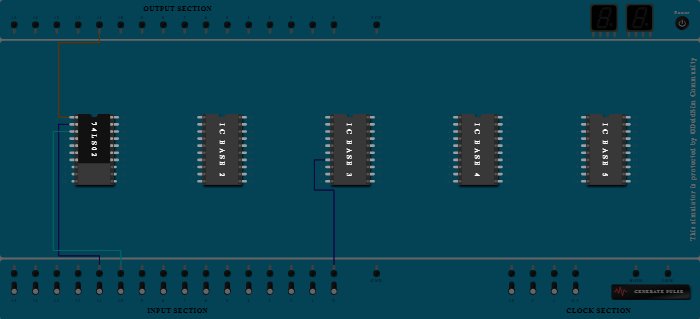

  1. Connect Input-0 to Pin-7 (Input & Output) of ICBase-3.
  2. Add IC 74LS02 into ICBase-1 (74LS02).
  3. Connect Pin-2 (Input) of ICBase-1 (74LS02) to Input-11.
  4. Connect Pin-3 (Input) of ICBase-1 (74LS02) to Input-10.
  5. Connect Pin-1 (Output) of ICBase-1 (74LS02) to Output-11.
