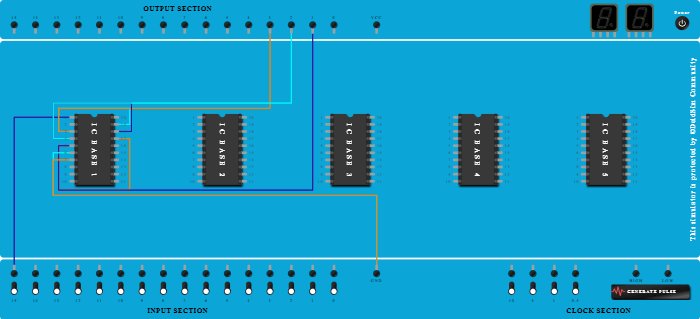

Procedure

  1. Connect Input-15 to Pin-1 (Input & Output) of ICBase-1.
  2. Connect Pin-19 (Input & Output) of ICBase-1 to Pin-3 (Input & Output) of ICBase-1.
  3. Connect Output-3 to Pin-3 (Input & Output) of ICBase-1.
  4. Connect Pin-18 (Input & Output) of ICBase-1 to Pin-4 (Input & Output) of ICBase-1.
  5. Connect Output-2 to Pin-4 (Input & Output) of ICBase-1.
  6. Connect Pin-17 (Input & Output) of ICBase-1 to Pin-5 (Input & Output) of ICBase-1.
  7. Connect Output-1 to Pin-5 (Input & Output) of ICBase-1.
  8. Connect GND Port to Pin-6 (Input & Output) of ICBase-1.
  9. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
