Untitled circuit

mohit
mohit
Created on Oct 29, 2025 0 0 2
Untitled circuit
100%

Integrated Circuits Used

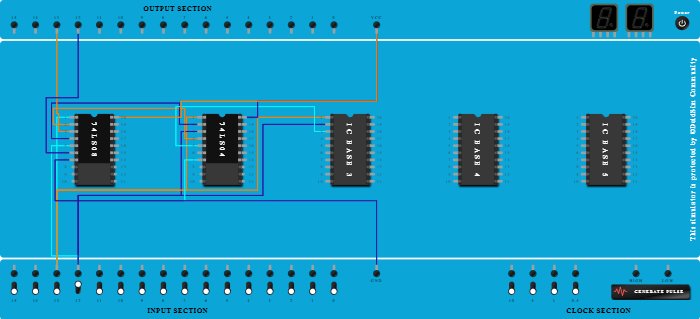

Procedure

  1. Add IC 74LS08 into ICBase-1 (74LS08).
  2. Add IC 74LS04 into ICBase-2 (74LS04).
  3. Connect Input-13 to Pin-1 (Input) of ICBase-2 (74LS04).
  4. Connect Input-12 to Pin-3 (Input) of ICBase-2 (74LS04).
  5. Connect Pin-1 (Input) of ICBase-1 (74LS08) to Input-13.
  6. Connect Pin-2 (Input) of ICBase-1 (74LS08) to Pin-4 (Output) of ICBase-2 (74LS04).
  7. Connect Pin-4 (Input) of ICBase-1 (74LS08) to Pin-2 (Output) of ICBase-2 (74LS04).
  8. Connect Pin-5 (Input) of ICBase-1 (74LS08) to Input-12.
  9. Connect Output-13 to Pin-3 (Output) of ICBase-1 (74LS08).
  10. Connect Output-12 to Pin-6 (Output) of ICBase-1 (74LS08).
  11. Connect Pin-1 (Input & Output) of ICBase-3 to Input-13.
  12. Connect Pin-2 (Input & Output) of ICBase-3 to Input-12.
  13. Connect Pin-5 (Input) of ICBase-2 (74LS04) to Pin-3 (Input & Output) of ICBase-3.
  14. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  15. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  16. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS08).
  17. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
