Integrated Circuits Used

74LS83 74LS86

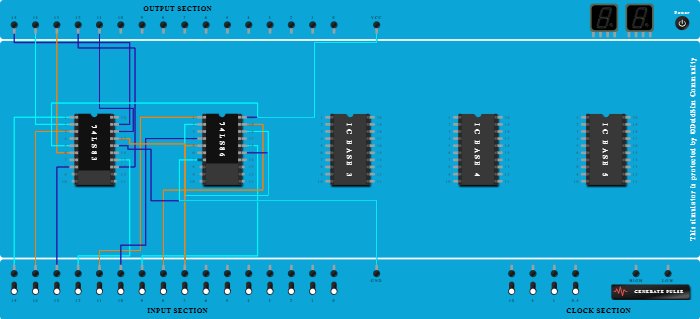

Procedure

  1. Add IC 74LS83 into ICBase-1 (74LS83).
  2. Add IC 74LS86 into ICBase-2 (74LS86).
  3. Connect Pin-19 (Output) of ICBase-1 (74LS83) to Output-15.
  4. Connect Pin-2 (Output) of ICBase-1 (74LS83) to Output-14.
  5. Connect Pin-6 (Output) of ICBase-1 (74LS83) to Output-13.
  6. Connect Pin-13 (Output) of ICBase-1 (74LS83) to Output-12.
  7. Connect Pin-1 (Input) of ICBase-1 (74LS83) to Input-15.
  8. Connect Pin-3 (Input) of ICBase-1 (74LS83) to Input-14.
  9. Connect Pin-8 (Input) of ICBase-1 (74LS83) to Input-13.
  10. Connect Pin-14 (Input) of ICBase-1 (74LS83) to Input-12.
  11. Connect Pin-1 (Input) of ICBase-2 (74LS86) to Input-11.
  12. Connect Pin-4 (Input) of ICBase-2 (74LS86) to Input-10.
  13. Connect Pin-16 (Input) of ICBase-2 (74LS86) to Input-9.
  14. Connect Input-8 to Pin-19 (Input) of ICBase-2 (74LS86).
  15. Connect Output-11 to Pin-18 (Output) of ICBase-1 (74LS83).
  16. Connect Pin-2 (Input) of ICBase-2 (74LS86) to Input-7.
  17. Connect Pin-5 (Input) of ICBase-2 (74LS86) to Input-7.
  18. Connect Input-7 to Pin-15 (Input) of ICBase-2 (74LS86).
  19. Connect Pin-18 (Input) of ICBase-2 (74LS86) to Input-7.
  20. Connect Input-7 to Pin-17 (Input) of ICBase-1 (74LS83).
  21. Connect Pin-20 (VCC) of ICBase-2 (74LS86) to VCC Port.
  22. Connect VCC Port to Pin-5 (VCC) of ICBase-1 (74LS83).
  23. Connect GND Port to Pin-16 (Ground) of ICBase-1 (74LS83).
  24. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS86).
