Untitled circuit

mami2
mami2
Created on Oct 7, 2025 0 0 3
Untitled circuit
100%

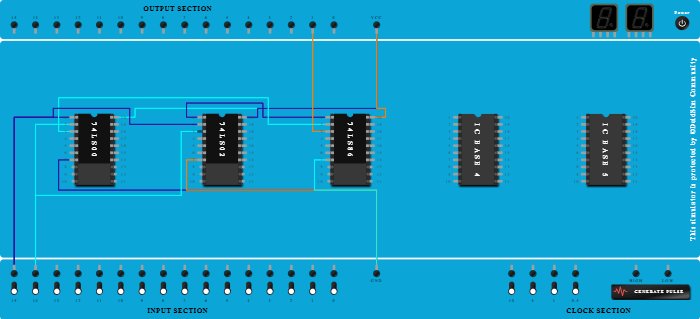

Integrated Circuits Used

Procedure

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Add IC 74LS02 into ICBase-2 (74LS02).
  3. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS00).
  4. Connect Input-14 to Pin-2 (Input) of ICBase-1 (74LS00).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS00).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS00).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS02).
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS02).
  9. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS86).
  10. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS86).
  11. Connect Pin-1 (Input) of ICBase-3 (74LS86) to Pin-1 (Output) of ICBase-2 (74LS02).
  12. Connect Output-1 to Pin-3 (Output) of ICBase-3 (74LS86).
  13. Add IC 74LS86 into ICBase-3 (74LS86).
  14. Connect Pin-2 (Input) of ICBase-3 (74LS86) to Pin-3 (Output) of ICBase-1 (74LS00).
  15. Connect Input-15 to Pin-2 (Input) of ICBase-2 (74LS02).
  16. Connect Input-14 to Pin-3 (Input) of ICBase-2 (74LS02).
