Untitled circuit
100%

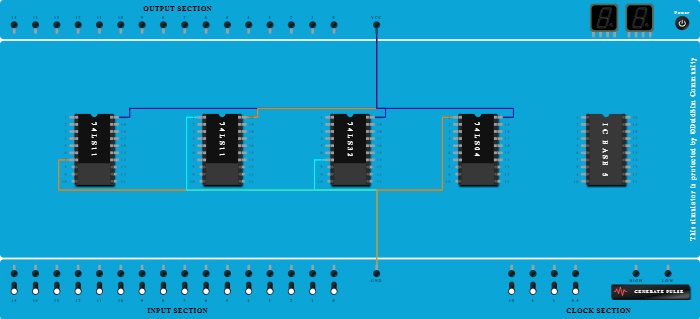

Integrated Circuits Used

74LS11 74LS32 74LS04

Procedure

  1. Add IC 74LS11 into ICBase-1 (74LS11).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS32).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS11).
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS11).
  6. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS11).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS11).
  8. Add IC 74LS11 into ICBase-2 (74LS11).
  9. Add IC 74LS32 into ICBase-3 (74LS32).
  10. Add IC 74LS04 into ICBase-4 (74LS04).
  11. Connect GND Port to Pin-1 (Input) of ICBase-4 (74LS04).
  12. Connect Pin-20 (VCC) of ICBase-4 (74LS04) to VCC Port.
