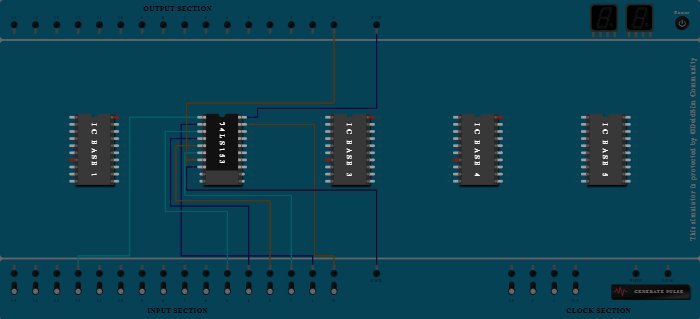

Integrated Circuits Used

74LS153

Procedure

  1. Add IC 74LS153 into ICBase-2 (74LS153).
  2. Connect GND Port to Pin-7 (Output) of ICBase-2 (74LS153).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS153).
  4. Connect Pin-1 (Input) of ICBase-2 (74LS153) to Input-12.
  5. Connect Pin-19 (Input) of ICBase-2 (74LS153) to Input-0.
  6. Connect Pin-2 (Input) of ICBase-2 (74LS153) to Input-1.
  7. Connect Input-2 to Pin-6 (Input) of ICBase-2 (74LS153).
  8. Connect Input-3 to Pin-5 (Input) of ICBase-2 (74LS153).
  9. Connect Input-4 to Pin-4 (Input) of ICBase-2 (74LS153).
  10. Connect Input-5 to Pin-3 (Input) of ICBase-2 (74LS153).
  11. Connect Output-0 to Pin-7 (Output) of ICBase-2 (74LS153).
  12. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS153).
