New Circuit

Saad
Saad
• Created on Oct 7, 2025 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS153

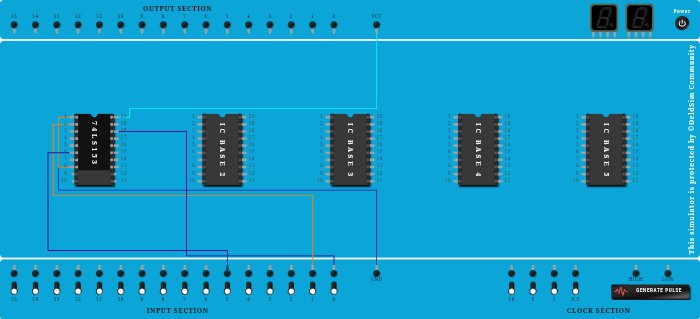

Procedure

  1. Add IC 74LS153 into ICBase-1 (74LS153).
  2. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS153).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS153).
  4. Connect Pin-1 (Input) of ICBase-1 (74LS153) to Pin-8 (Ground) of ICBase-1 (74LS153).
  5. Connect Pin-18 (Input) of ICBase-1 (74LS153) to Input-0.
  6. Connect Input-1 to Pin-2 (Input) of ICBase-1 (74LS153).
  7. Connect Pin-6 (Input) of ICBase-1 (74LS153) to Input-5.
