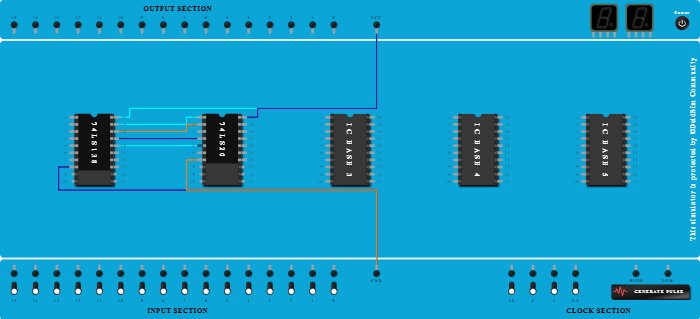

Integrated Circuits Used

Procedure

  1. Add IC 74LS138 into ICBase-1 (74LS138).
  2. Add IC 74LS20 into ICBase-2 (74LS20).
  3. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS138).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS138).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS20).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS20).
  7. Connect Pin-19 (Output) of ICBase-1 (74LS138) to Pin-1 (Input) of ICBase-2 (74LS20).
  8. Connect Pin-18 (Output) of ICBase-1 (74LS138) to Pin-2 (Input) of ICBase-2 (74LS20).
  9. Connect Pin-17 (Output) of ICBase-1 (74LS138) to Pin-4 (Input) of ICBase-2 (74LS20).
  10. Connect Pin-16 (Output) of ICBase-1 (74LS138) to Pin-5 (Input) of ICBase-2 (74LS20).
