74LS11 3-input AND Gate
100%

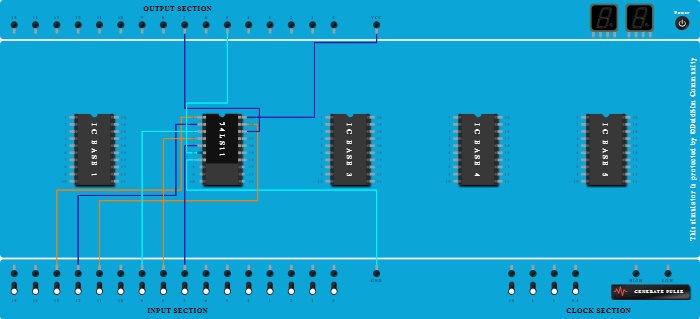

Procedure

  1. Add IC 74LS11 into ICBase-2 (74LS11).
  2. Connect Pin-20 (VCC) of ICBase-2 (74LS11) to VCC Port.
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS11).
  4. Connect Input-13 to Pin-1 (Input) of ICBase-2 (74LS11).
  5. Connect Input-12 to Pin-2 (Input) of ICBase-2 (74LS11).
  6. Connect Input-11 to Pin-19 (Input) of ICBase-2 (74LS11).
  7. Connect Output-7 to Pin-18 (Output) of ICBase-2 (74LS11).
  8. Connect Pin-3 (Input) of ICBase-2 (74LS11) to Input-9.
  9. Connect Input-8 to Pin-4 (Input) of ICBase-2 (74LS11).
  10. Connect Input-7 to Pin-5 (Input) of ICBase-2 (74LS11).
  11. Connect Output-5 to Pin-6 (Output) of ICBase-2 (74LS11).
