New Circuit

harsha v.s
harsha v.s
• Created on Oct 6, 2025 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

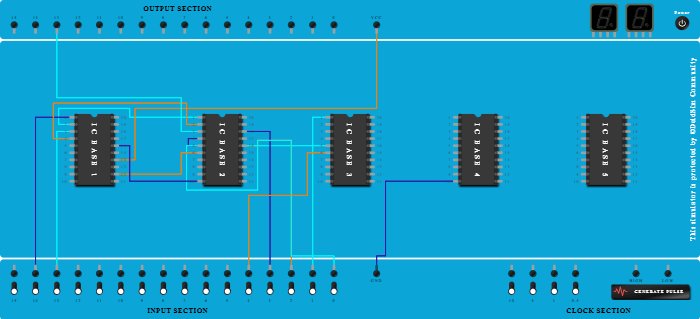

Procedure

  1. Connect Pin-1 (Input & Output) of ICBase-2 to Pin-2 (Input & Output) of ICBase-1.
  2. Connect VCC Port to Pin-14 (Input & Output) of ICBase-1.
  3. Connect Input-14 to Pin-1 (Input & Output) of ICBase-1.
  4. Connect Input-13 to Pin-3 (Input & Output) of ICBase-1.
  5. Connect Pin-4 (Input & Output) of ICBase-1 to Pin-2 (Input & Output) of ICBase-2.
  6. Connect Output-13 to Pin-3 (Input & Output) of ICBase-2.
  7. Connect Pin-5 (Input & Output) of ICBase-2 to Pin-4 (Input & Output) of ICBase-2.
  8. Connect Pin-5 (Input & Output) of ICBase-3 to Pin-5 (Input & Output) of ICBase-2.
  9. Connect Pin-12 (Input & Output) of ICBase-1 to Pin-6 (Input & Output) of ICBase-2.
  10. Connect Pin-10 (Input & Output) of ICBase-2 to Pin-16 (Input & Output) of ICBase-1.
  11. Connect Input-1 to Pin-1 (Input & Output) of ICBase-3.
  12. Connect Input-2 to Pin-16 (Input & Output) of ICBase-2.
  13. Connect Input-3 to Pin-18 (Input & Output) of ICBase-2.
  14. Connect Pin-16 (Input & Output) of ICBase-2 to Input-0.
  15. Connect Input-4 to Pin-6 (Input & Output) of ICBase-3.
  16. Connect Pin-10 (Input & Output) of ICBase-4 to GND Port.
