3 Input NAND gate
100%

Integrated Circuits Used

74LS10

Procedure

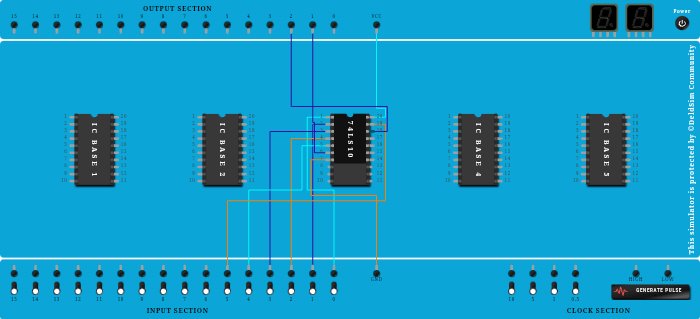

  1. Add IC 74LS10 into ICBase-3 (74LS10).
  2. Connect Input-1 to Pin-2 (Input) of ICBase-3 (74LS10).
  3. Connect Input-0 to Pin-1 (Input) of ICBase-3 (74LS10).
  4. Connect Input-2 to Pin-4 (Input) of ICBase-3 (74LS10).
  5. Connect Input-3 to Pin-3 (Input) of ICBase-3 (74LS10).
  6. Connect Input-4 to Pin-5 (Input) of ICBase-3 (74LS10).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS10).
  8. Connect Output-1 to Pin-6 (Output) of ICBase-3 (74LS10).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS10).
  10. Connect Input-5 to Pin-19 (Input) of ICBase-3 (74LS10).
  11. Connect Output-2 to Pin-18 (Output) of ICBase-3 (74LS10).
