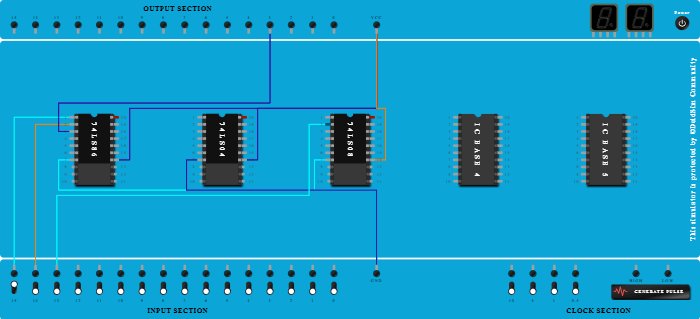

Integrated Circuits Used

74LS86 74LS04 74LS08

Procedure

  1. Add IC 74LS86 into ICBase-1 (74LS86).
  2. Add IC 74LS04 into ICBase-2 (74LS04).
  3. Connect VCC Port to Pin-14 (Output) of ICBase-1 (74LS86).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS86).
  5. Add IC 74LS08 into ICBase-3 (74LS08).
  6. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS86).
  7. Connect Input-14 to Pin-2 (Input) of ICBase-1 (74LS86).
  8. Connect VCC Port to Pin-14 (Output) of ICBase-2 (74LS04).
  9. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  10. Connect VCC Port to Pin-14 (Output) of ICBase-3 (74LS08).
  11. Connect Pin-7 (Ground) of ICBase-2 (74LS04) to GND Port.
  12. Connect Output-3 to Pin-3 (Output) of ICBase-1 (74LS86).
  13. Connect Input-13 to Pin-2 (Input) of ICBase-3 (74LS08).
