New Circuit

Saleem khan
Saleem khan
• Created on Nov 18, 2025 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS27

Procedure

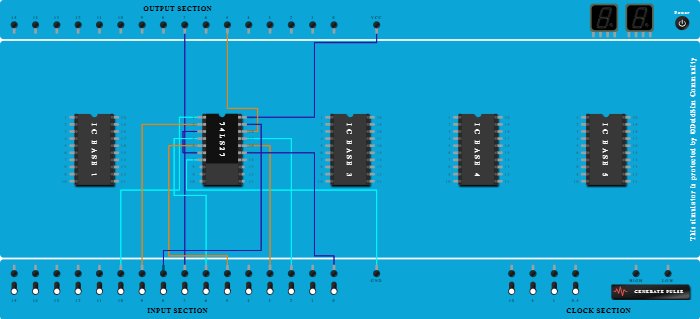

  1. Add IC 74LS27 into ICBase-2 (74LS27).
  2. Connect Pin-20 (VCC) of ICBase-2 (74LS27) to VCC Port.
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS27).
  4. Connect Output-5 to Pin-18 (Output) of ICBase-2 (74LS27).
  5. Connect Output-7 to Pin-6 (Output) of ICBase-2 (74LS27).
  6. Connect Input-2 to Pin-17 (Input) of ICBase-2 (74LS27).
  7. Connect Pin-16 (Input) of ICBase-2 (74LS27) to Input-3.
  8. Connect Pin-15 (Input) of ICBase-2 (74LS27) to Input-0.
  9. Connect Input-10 to Pin-1 (Input) of ICBase-2 (74LS27).
  10. Connect Input-9 to Pin-2 (Input) of ICBase-2 (74LS27).
  11. Connect Input-7 to Pin-3 (Input) of ICBase-2 (74LS27).
  12. Connect Input-6 to Pin-4 (Input) of ICBase-2 (74LS27).
  13. Connect Pin-5 (Input) of ICBase-2 (74LS27) to Input-5.
  14. Connect Pin-19 (Input) of ICBase-2 (74LS27) to Input-8.
