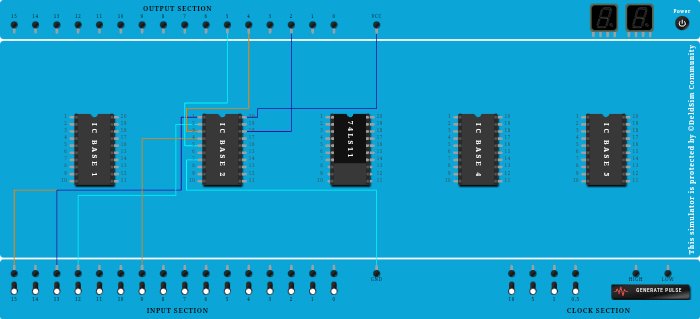

Procedure

  1. Add IC 74LS11 into ICBase-3 (74LS11).
  2. Connect VCC Port to Pin-20 (Input & Output) of ICBase-2.
  3. Connect GND Port to Pin-7 (Input & Output) of ICBase-2.
  4. Connect Input-15 to Pin-1 (Input & Output) of ICBase-2.
  5. Connect Pin-1 (Input & Output) of ICBase-2 to Input-13.
  6. Connect Input-12 to Pin-2 (Input & Output) of ICBase-2.
  7. Connect Output-4 to Pin-3 (Input & Output) of ICBase-2.
  8. Connect Output-2 to Pin-18 (Input & Output) of ICBase-2.
  9. Connect Output-5 to Pin-5 (Input & Output) of ICBase-2.
  10. Connect Input-9 to Pin-4 (Input & Output) of ICBase-2.
