Untitled circuit

Emin
Emin
Created on Oct 7, 2025 0 0 4
Untitled circuit
100%

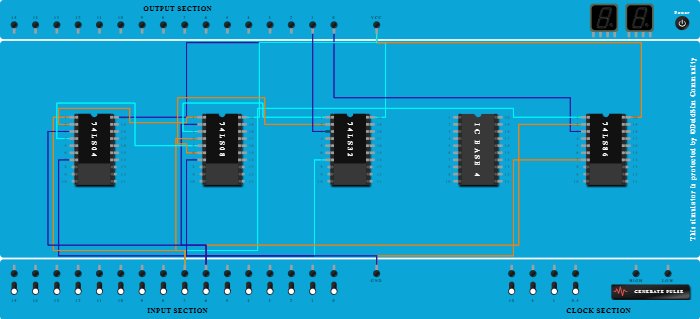

Integrated Circuits Used

Procedure

  1. Connect Pin-7 (Ground) of ICBase-1 (74LS04) to GND Port.
  2. Connect Pin-7 (Ground) of ICBase-3 (74LS32) to GND Port.
  3. Connect Pin-7 (Ground) of ICBase-5 (74LS86) to GND Port.
  4. Connect Pin-20 (VCC) of ICBase-1 (74LS04) to VCC Port.
  5. Connect Pin-20 (VCC) of ICBase-3 (74LS32) to VCC Port.
  6. Connect Pin-20 (VCC) of ICBase-5 (74LS86) to VCC Port.
  7. Add IC 74LS86 into ICBase-5 (74LS86).
  8. Connect Pin-1 (Input) of ICBase-1 (74LS04) to Input-7.
  9. Connect Output-0 to Pin-3 (Output) of ICBase-5 (74LS86).
  10. Add IC 74LS04 into ICBase-1 (74LS04).
  11. Add IC 74LS08 into ICBase-2 (74LS08).
  12. Add IC 74LS32 into ICBase-3 (74LS32).
  13. Connect Pin-1 (Input) of ICBase-5 (74LS86) to Input-7.
  14. Connect Pin-2 (Input) of ICBase-5 (74LS86) to Input-6.
  15. Connect Pin-7 (Ground) of ICBase-2 (74LS08) to GND Port.
  16. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS08).
  17. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Pin-2 (Output) of ICBase-1 (74LS04).
  18. Connect Pin-2 (Input) of ICBase-2 (74LS08) to Input-6.
  19. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Pin-3 (Output) of ICBase-2 (74LS08).
  20. Connect Pin-4 (Input) of ICBase-2 (74LS08) to Input-7.
  21. Connect Pin-3 (Input) of ICBase-1 (74LS04) to Input-6.
  22. Connect Pin-5 (Input) of ICBase-2 (74LS08) to Pin-4 (Output) of ICBase-1 (74LS04).
  23. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Pin-6 (Output) of ICBase-2 (74LS08).
  24. Connect Output-1 to Pin-3 (Output) of ICBase-3 (74LS32).
