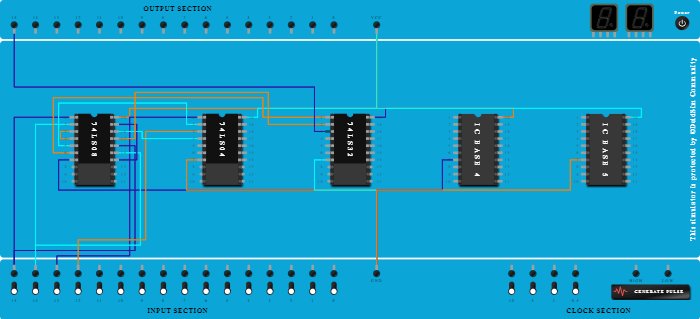

Integrated Circuits Used

74LS08 74LS04 74LS32

Procedure

  1. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS08).
  2. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS32).
  7. Connect VCC Port to Pin-20 (Input & Output) of ICBase-4.
  8. Connect GND Port to Pin-7 (Input & Output) of ICBase-4.
  9. Connect VCC Port to Pin-20 (Input & Output) of ICBase-5.
  10. Connect GND Port to Pin-7 (Input & Output) of ICBase-5.
  11. Add IC 74LS08 into ICBase-1 (74LS08).
  12. Add IC 74LS04 into ICBase-2 (74LS04).
  13. Connect Pin-1 (Input) of ICBase-1 (74LS08) to Input-15.
  14. Connect Pin-2 (Input) of ICBase-1 (74LS08) to Input-14.
  15. Connect Pin-4 (Input) of ICBase-1 (74LS08) to Pin-3 (Output) of ICBase-1 (74LS08).
  16. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Input-13.
  17. Connect Pin-5 (Input) of ICBase-1 (74LS08) to Pin-2 (Output) of ICBase-2 (74LS04).
  18. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Pin-6 (Output) of ICBase-1 (74LS08).
  19. Add IC 74LS32 into ICBase-3 (74LS32).
  20. Connect Pin-16 (Input) of ICBase-1 (74LS08) to Input-15.
  21. Connect Pin-15 (Input) of ICBase-1 (74LS08) to Input-14.
  22. Connect Pin-3 (Input) of ICBase-2 (74LS04) to Input-12.
  23. Connect Pin-19 (Input) of ICBase-1 (74LS08) to Pin-14 (Output) of ICBase-1 (74LS08).
  24. Connect Pin-18 (Input) of ICBase-1 (74LS08) to Pin-4 (Output) of ICBase-2 (74LS04).
  25. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Pin-17 (Output) of ICBase-1 (74LS08).
  26. Connect Output-15 to Pin-3 (Output) of ICBase-3 (74LS32).
