Untitled circuit

yusuf
yusuf
Created on Oct 7, 2025 0 0 3
Untitled circuit
100%

Integrated Circuits Used

Procedure

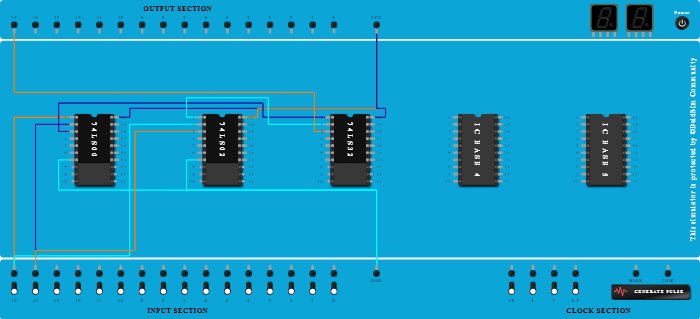

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS00).
  3. Add IC 74LS02 into ICBase-2 (74LS02).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS02).
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS02).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
  7. Connect Pin-7 (Ground) of ICBase-1 (74LS00) to GND Port.
  8. Connect Pin-1 (Input) of ICBase-1 (74LS00) to Input-15.
  9. Connect Pin-2 (Input) of ICBase-1 (74LS00) to Input-14.
  10. Connect Pin-2 (Input) of ICBase-2 (74LS02) to Input-15.
  11. Connect Pin-3 (Input) of ICBase-2 (74LS02) to Input-14.
  12. Add IC 74LS32 into ICBase-3 (74LS32).
  13. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Pin-3 (Output) of ICBase-1 (74LS00).
  14. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Pin-1 (Output) of ICBase-2 (74LS02).
  15. Connect Output-15 to Pin-3 (Output) of ICBase-3 (74LS32).
