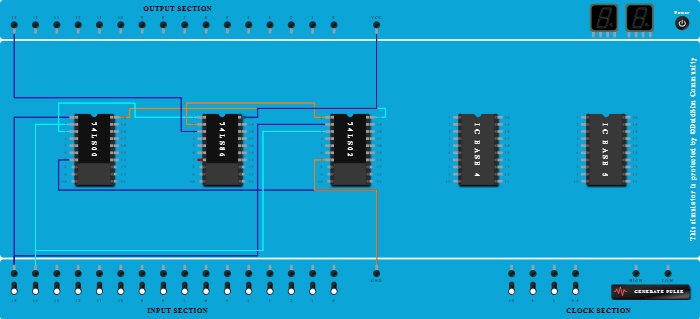

Integrated Circuits Used

74LS00 74LS86 74LS02

Procedure

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Connect Pin-1 (Input) of ICBase-1 (74LS00) to Input-15.
  3. Connect Pin-2 (Input) of ICBase-1 (74LS00) to Input-14.
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS00).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS00).
  6. Add IC 74LS86 into ICBase-2 (74LS86).
  7. Connect Pin-1 (Input) of ICBase-2 (74LS86) to Pin-3 (Output) of ICBase-1 (74LS00).
  8. Add IC 74LS02 into ICBase-3 (74LS02).
  9. Connect Pin-2 (Input) of ICBase-3 (74LS02) to Input-15.
  10. Connect Pin-3 (Input) of ICBase-3 (74LS02) to Input-14.
  11. Connect Pin-2 (Input) of ICBase-2 (74LS86) to Pin-1 (Output) of ICBase-3 (74LS02).
  12. Connect Output-15 to Pin-3 (Output) of ICBase-2 (74LS86).
  13. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS02).
  14. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS02).
  15. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS86).
