Untitled circuit
100%

Integrated Circuits Used

74LS86

Procedure

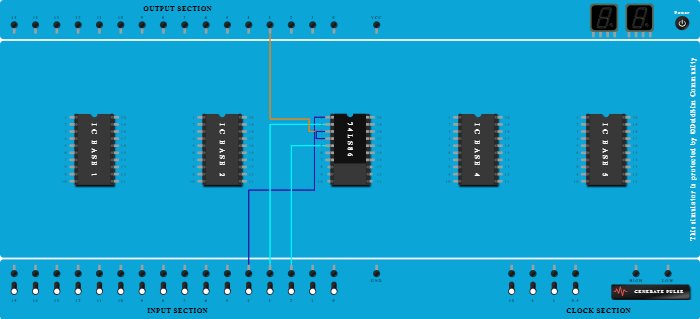

  1. Add IC 74LS86 into ICBase-3 (74LS86).
  2. Connect Input-4 to Pin-1 (Input) of ICBase-3 (74LS86).
  3. Connect Pin-2 (Input) of ICBase-3 (74LS86) to Input-3.
  4. Connect Output-3 to Pin-3 (Output) of ICBase-3 (74LS86).
  5. Connect Pin-4 (Input) of ICBase-3 (74LS86) to Pin-3 (Output) of ICBase-3 (74LS86).
  6. Connect Input-2 to Pin-5 (Input) of ICBase-3 (74LS86).
