New Circuit

Chaithra P
Chaithra P
• Created on Oct 30, 2025 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS08 74LS32

Procedure

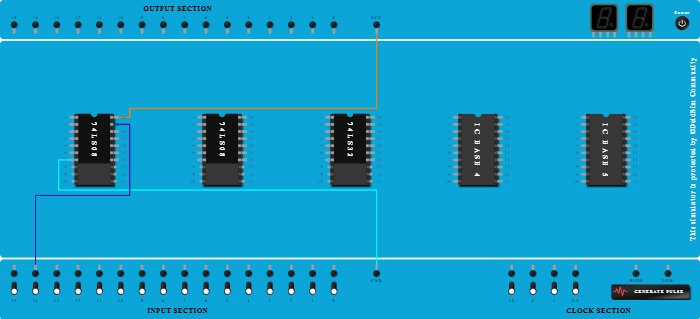

  1. Add IC 74LS08 into ICBase-1 (74LS08).
  2. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS08).
  4. Add IC 74LS08 into ICBase-2 (74LS08).
  5. Add IC 74LS32 into ICBase-3 (74LS32).
  6. Connect Input-14 to Pin-19 (Input) of ICBase-1 (74LS08).
