Untitled circuit

vaidehi
vaidehi
• Created on Oct 13, 2025 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

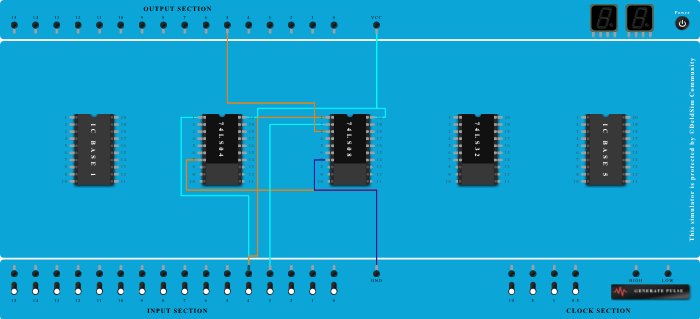

Integrated Circuits Used

74LS04 74LS08 74LS32

Procedure

  1. Add IC 74LS04 into ICBase-2 (74LS04).
  2. Add IC 74LS08 into ICBase-3 (74LS08).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS08).
  8. Connect Input-3 to Pin-2 (Input) of ICBase-3 (74LS08).
  9. Connect Output-5 to Pin-3 (Output) of ICBase-3 (74LS08).
  10. Connect Input-4 to Pin-1 (Input) of ICBase-2 (74LS04).
  11. Connect Pin-1 (Input) of ICBase-3 (74LS08) to Input-4.
