Integrated Circuits Used

74LS08 74LS32

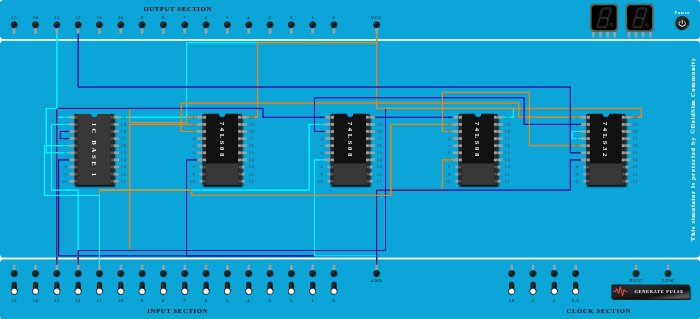

Procedure

  1. Add IC 74LS08 into ICBase-2 (74LS08).
  2. Add IC 74LS08 into ICBase-3 (74LS08).
  3. Add IC 74LS08 into ICBase-4 (74LS08).
  4. Add IC 74LS32 into ICBase-5 (74LS32).
  5. Connect Pin-7 (Input & Output) of ICBase-1 to GND Port.
  6. Connect Pin-20 (Input & Output) of ICBase-1 to VCC Port.
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS08).
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS08).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS08).
  10. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS32).
  11. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  12. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  13. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS08).
  14. Connect GND Port to Pin-7 (Ground) of ICBase-5 (74LS32).
  15. Connect Input-13 to Pin-1 (Input & Output) of ICBase-1.
  16. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Input-13.
  17. Connect Pin-1 (Input) of ICBase-3 (74LS08) to Input-13.
  18. Connect Input-12 to Pin-2 (Input & Output) of ICBase-1.
  19. Connect Pin-2 (Input) of ICBase-2 (74LS08) to Input-12.
  20. Connect Pin-1 (Input) of ICBase-4 (74LS08) to Input-12.
  21. Connect Input-11 to Pin-2 (Input) of ICBase-3 (74LS08).
  22. Connect Pin-2 (Input) of ICBase-4 (74LS08) to Input-11.
  23. Connect Pin-4 (Input & Output) of ICBase-1 to Pin-3 (Input & Output) of ICBase-1.
  24. Connect Output-13 to Pin-6 (Input & Output) of ICBase-1.
  25. Connect Pin-1 (Input) of ICBase-5 (74LS32) to Pin-3 (Output) of ICBase-2 (74LS08).
  26. Connect Pin-2 (Input) of ICBase-5 (74LS32) to Pin-3 (Output) of ICBase-3 (74LS08).
  27. Connect Pin-4 (Input) of ICBase-5 (74LS32) to Pin-3 (Output) of ICBase-5 (74LS32).
  28. Connect Pin-5 (Input) of ICBase-5 (74LS32) to Pin-3 (Output) of ICBase-4 (74LS08).
  29. Connect Output-12 to Pin-6 (Output) of ICBase-5 (74LS32).
  30. Connect Input-11 to Pin-5 (Input & Output) of ICBase-1.
