Question 1
100%

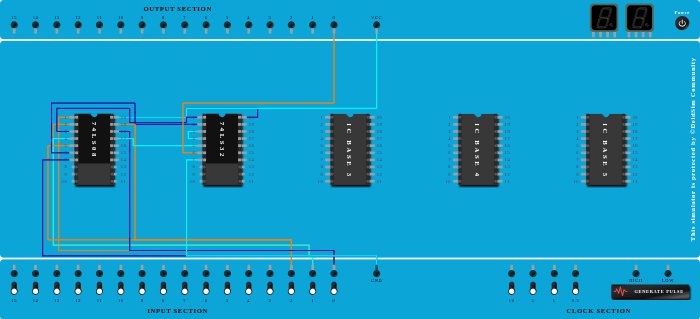

Procedure

  1. Add IC 74LS08 into ICBase-1 (74LS08).
  2. Add IC 74LS32 into ICBase-2 (74LS32).
  3. Connect Pin-1 (Input) of ICBase-1 (74LS08) to Input-0.
  4. Connect Pin-20 (VCC) of ICBase-1 (74LS08) to Pin-20 (VCC) of ICBase-2 (74LS32).
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS08).
  6. Connect Pin-2 (Input) of ICBase-1 (74LS08) to Input-1.
  7. Connect Pin-1 (Input) of ICBase-2 (74LS32) to Pin-3 (Output) of ICBase-1 (74LS08).
  8. Connect Pin-4 (Input) of ICBase-1 (74LS08) to Input-1.
  9. Connect Pin-5 (Input) of ICBase-1 (74LS08) to Input-2.
  10. Connect Pin-2 (Input) of ICBase-2 (74LS32) to Pin-6 (Output) of ICBase-1 (74LS08).
  11. Connect Pin-4 (Input) of ICBase-2 (74LS32) to Pin-3 (Output) of ICBase-2 (74LS32).
  12. Connect Pin-19 (Input) of ICBase-1 (74LS08) to Input-2.
  13. Connect Pin-18 (Input) of ICBase-1 (74LS08) to Input-0.
  14. Connect Pin-5 (Input) of ICBase-2 (74LS32) to Pin-17 (Output) of ICBase-1 (74LS08).
  15. Connect Output-0 to Pin-6 (Output) of ICBase-2 (74LS32).
  16. Connect Pin-7 (Ground) of ICBase-1 (74LS08) to GND Port.
  17. Connect Pin-7 (Ground) of ICBase-2 (74LS32) to GND Port.
