Integrated Circuits Used

74LS08 74LS32

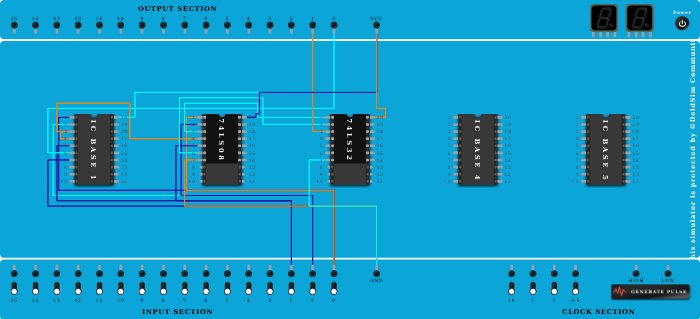

Procedure

  1. Add IC 74LS08 into ICBase-2 (74LS08).
  2. Add IC 74LS32 into ICBase-3 (74LS32).
  3. Connect Input-0 to Pin-1 (Input & Output) of ICBase-1.
  4. Connect Input-1 to Pin-2 (Input & Output) of ICBase-1.
  5. Connect Pin-4 (Input & Output) of ICBase-1 to Pin-3 (Input & Output) of ICBase-1.
  6. Connect Input-2 to Pin-5 (Input & Output) of ICBase-1.
  7. Connect Output-0 to Pin-6 (Input & Output) of ICBase-1.
  8. Connect Input-0 to Pin-1 (Input) of ICBase-2 (74LS08).
  9. Connect Input-1 to Pin-2 (Input) of ICBase-2 (74LS08).
  10. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Pin-3 (Output) of ICBase-2 (74LS08).
  11. Connect Pin-4 (Input) of ICBase-2 (74LS08) to Pin-3 (Input & Output) of ICBase-1.
  12. Connect Pin-5 (Input) of ICBase-2 (74LS08) to Input-2.
  13. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Pin-6 (Output) of ICBase-2 (74LS08).
  14. Connect Output-1 to Pin-3 (Output) of ICBase-3 (74LS32).
  15. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  16. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  17. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  18. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS08).
  19. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS32).
  20. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
