Untitled circuit
100%

Integrated Circuits Used

74LS00

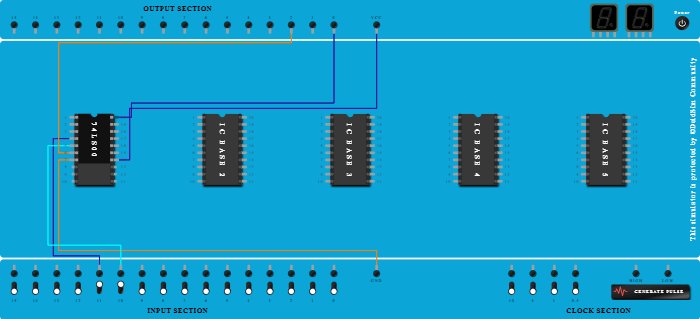

Procedure

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Connect Pin-7 (Ground) of ICBase-1 (74LS00) to GND Port.
  3. Connect Pin-4 (Input) of ICBase-1 (74LS00) to Input-11.
  4. Connect Pin-5 (Input) of ICBase-1 (74LS00) to Input-10.
  5. Connect Pin-6 (Output) of ICBase-1 (74LS00) to Output-2.
  6. Connect VCC Port to Pin-14 (Output) of ICBase-1 (74LS00).
  7. Connect Output-0 to Pin-20 (VCC) of ICBase-1 (74LS00).
