3 input AND gate
100%

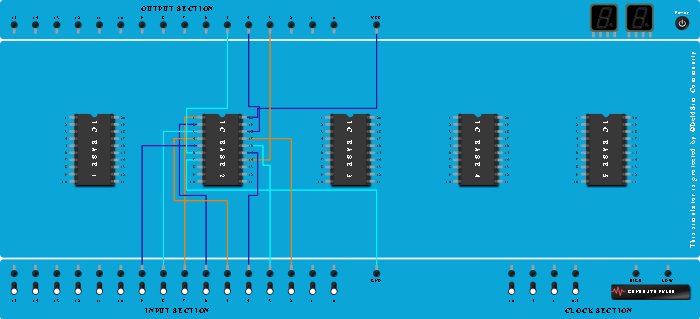

Procedure

  1. Connect VCC Port to Pin-20 (Input & Output) of ICBase-2.
  2. Connect GND Port to Pin-7 (Input & Output) of ICBase-2.
  3. Connect Input-7 to Pin-1 (Input & Output) of ICBase-2.
  4. Connect Input-6 to Pin-2 (Input & Output) of ICBase-2.
  5. Connect Input-8 to Pin-3 (Input & Output) of ICBase-2.
  6. Connect Input-5 to Pin-4 (Input & Output) of ICBase-2.
  7. Connect Input-9 to Pin-5 (Input & Output) of ICBase-2.
  8. Connect Output-5 to Pin-6 (Input & Output) of ICBase-2.
  9. Connect Output-3 to Pin-14 (Input & Output) of ICBase-2.
  10. Connect Input-4 to Pin-15 (Input & Output) of ICBase-2.
  11. Connect Input-3 to Pin-16 (Input & Output) of ICBase-2.
  12. Connect Input-2 to Pin-17 (Input & Output) of ICBase-2.
  13. Connect Output-4 to Pin-18 (Input & Output) of ICBase-2.
