New Circuit
100%

Integrated Circuits Used

74LS02

Procedure

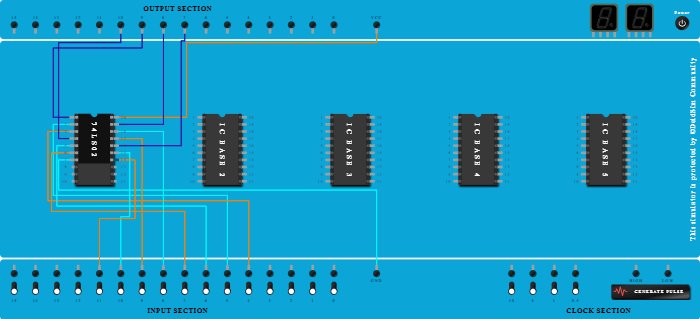

  1. Add IC 74LS02 into ICBase-1 (74LS02).
  2. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS02).
  3. Connect Pin-20 (VCC) of ICBase-1 (74LS02) to VCC Port.
  4. Connect Pin-1 (Output) of ICBase-1 (74LS02) to Output-10.
  5. Connect Input-5 to Pin-2 (Input) of ICBase-1 (74LS02).
  6. Connect Input-4 to Pin-3 (Input) of ICBase-1 (74LS02).
  7. Connect Pin-4 (Output) of ICBase-1 (74LS02) to Output-9.
  8. Connect Input-6 to Pin-5 (Input) of ICBase-1 (74LS02).
  9. Connect Input-7 to Pin-6 (Input) of ICBase-1 (74LS02).
  10. Connect Pin-19 (Output) of ICBase-1 (74LS02) to Output-8.
  11. Connect Pin-18 (Input) of ICBase-1 (74LS02) to Input-8.
  12. Connect Pin-17 (Input) of ICBase-1 (74LS02) to Input-9.
  13. Connect Pin-16 (Output) of ICBase-1 (74LS02) to Output-7.
  14. Connect Input-10 to Pin-15 (Input) of ICBase-1 (74LS02).
  15. Connect Input-11 to Pin-14 (Input) of ICBase-1 (74LS02).
