New Circuit
100%

Integrated Circuits Used

74LS00

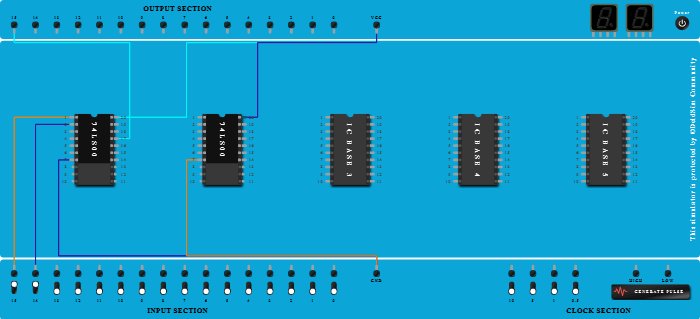

Procedure

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Connect Pin-7 (Ground) of ICBase-1 (74LS00) to GND Port.
  3. Connect Pin-20 (VCC) of ICBase-1 (74LS00) to VCC Port.
  4. Connect Pin-1 (Input) of ICBase-1 (74LS00) to Input-15.
  5. Connect Pin-2 (Input) of ICBase-1 (74LS00) to Input-14.
  6. Connect Pin-17 (Output) of ICBase-1 (74LS00) to Output-15.
  7. Add IC 74LS00 into ICBase-2 (74LS00).
  8. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
