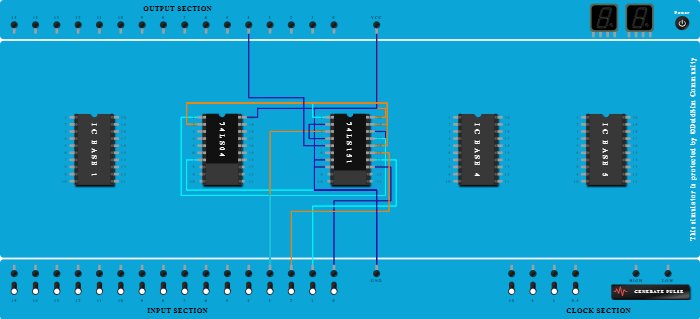

Procedure

  1. Add IC 74LS04 into ICBase-2 (74LS04).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS151).
  5. Connect GND Port to Pin-8 (Ground) of ICBase-3 (74LS151).
  6. Add IC 74LS151 into ICBase-3 (74LS151).
  7. Connect VCC Port to Pin-4 (Input) of ICBase-3 (74LS151).
  8. Connect Input-3 to Pin-1 (Input) of ICBase-2 (74LS04).
  9. Connect Input-3 to Pin-3 (Input) of ICBase-3 (74LS151).
  10. Connect GND Port to Pin-2 (Input) of ICBase-3 (74LS151).
  11. Connect Pin-2 (Output) of ICBase-2 (74LS04) to Pin-1 (Input) of ICBase-3 (74LS151).
  12. Connect Pin-2 (Output) of ICBase-2 (74LS04) to Pin-19 (Input) of ICBase-3 (74LS151).
  13. Connect Input-3 to Pin-18 (Input) of ICBase-3 (74LS151).
  14. Connect Pin-17 (Input) of ICBase-3 (74LS151) to Input-3.
  15. Connect Pin-2 (Output) of ICBase-2 (74LS04) to Pin-16 (Input) of ICBase-3 (74LS151).
  16. Connect Input-0 to Pin-13 (Input) of ICBase-3 (74LS151).
  17. Connect Input-1 to Pin-14 (Input) of ICBase-3 (74LS151).
  18. Connect Input-2 to Pin-15 (Input) of ICBase-3 (74LS151).
  19. Connect Output-4 to Pin-5 (Output) of ICBase-3 (74LS151).
  20. Connect GND Port to Pin-7 (Input) of ICBase-3 (74LS151).
