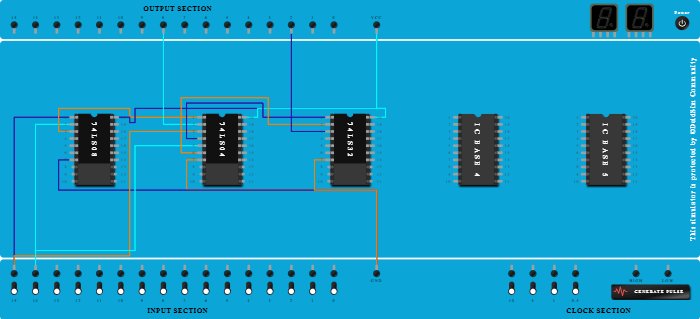

DeMorgan's Law - 1 -
100%

Description

(AB)' = A' + B'

Procedure

  1. Connect Pin-1 (Input) of ICBase-1 (74LS08) to Input-15.
  2. Connect Pin-2 (Input) of ICBase-1 (74LS08) to Input-14.
  3. Add IC 74LS08 into ICBase-1 (74LS08).
  4. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Pin-3 (Output) of ICBase-1 (74LS08).
  5. Add IC 74LS04 into ICBase-2 (74LS04).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS08).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  8. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  9. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
  10. Connect Output-8 to Pin-2 (Output) of ICBase-2 (74LS04).
  11. Connect Pin-3 (Input) of ICBase-2 (74LS04) to Input-15.
  12. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Pin-4 (Output) of ICBase-2 (74LS04).
  13. Connect Pin-5 (Input) of ICBase-2 (74LS04) to Input-14.
  14. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Pin-6 (Output) of ICBase-2 (74LS04).
  15. Connect Output-2 to Pin-3 (Output) of ICBase-3 (74LS32).
  16. Add IC 74LS32 into ICBase-3 (74LS32).
  17. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
  18. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS32).
