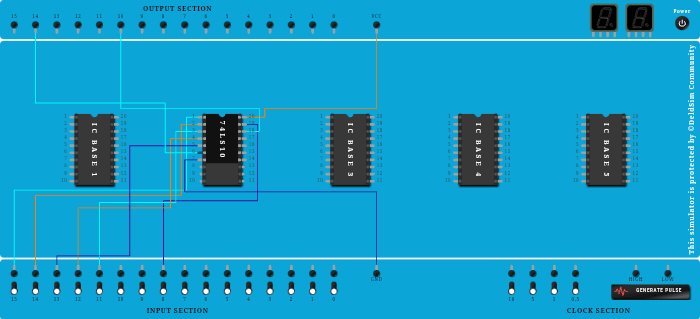

Procedure

  1. Add IC 74LS10 into ICBase-2 (74LS10).
  2. Connect Input-15 to Pin-1 (Input) of ICBase-2 (74LS10).
  3. Connect Input-14 to Pin-2 (Input) of ICBase-2 (74LS10).
  4. Connect Input-8 to Pin-19 (Input) of ICBase-2 (74LS10).
  5. Connect Output-10 to Pin-18 (Output) of ICBase-2 (74LS10).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS10).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS10).
  8. Connect Input-11 to Pin-3 (Input) of ICBase-2 (74LS10).
  9. Connect Input-12 to Pin-4 (Input) of ICBase-2 (74LS10).
  10. Connect Pin-5 (Input) of ICBase-2 (74LS10) to Input-13.
  11. Connect Output-14 to Pin-6 (Output) of ICBase-2 (74LS10).
