New Circuit

rabia batool
rabia batool
• Created on Oct 6, 2025 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS02

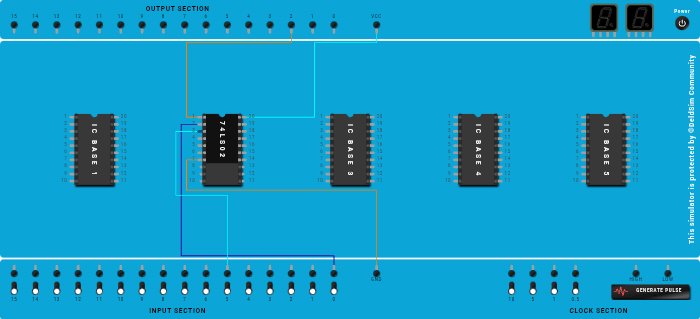

Procedure

  1. Add IC 74LS02 into ICBase-2 (74LS02).
  2. Connect Pin-20 (VCC) of ICBase-2 (74LS02) to VCC Port.
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS02).
  4. Connect Pin-2 (Input) of ICBase-2 (74LS02) to Input-0.
  5. Connect Pin-1 (Output) of ICBase-2 (74LS02) to Output-2.
  6. Connect Input-5 to Pin-3 (Input) of ICBase-2 (74LS02).
