74lS020 4-INPUT NAND Gate

Syed Zahid
Syed Zahid
• Created on Oct 14, 2025 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself

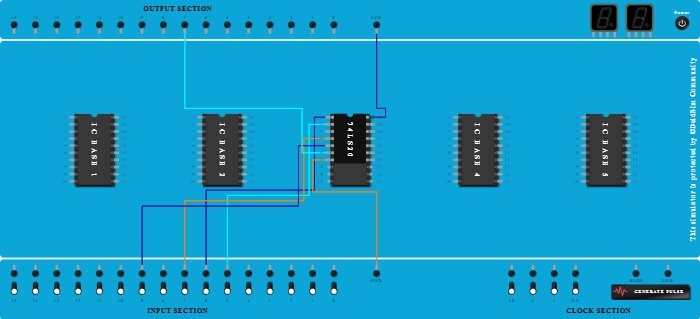

74lS020 4-INPUT NAND Gate
100%

Integrated Circuits Used

74LS20

Procedure

  1. Add IC 74LS20 into ICBase-3 (74LS20).
  2. Connect Input-6 to Pin-1 (Input) of ICBase-3 (74LS20).
  3. Connect Input-5 to Pin-2 (Input) of ICBase-3 (74LS20).
  4. Connect Input-7 to Pin-4 (Input) of ICBase-3 (74LS20).
  5. Connect Input-9 to Pin-5 (Input) of ICBase-3 (74LS20).
  6. Connect Output-7 to Pin-6 (Output) of ICBase-3 (74LS20).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS20).
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS20).
